Architectural diffusers

The only part of the systemanyone sees.

In most buildings the diffuser is the one visible piece of the HVAC system. EffectiV designs diffusers that architects and interior designers choose for their form, finish and colour, and that engineers specify for their performance.

See the projects Download the brochure

Designed to be seen

Round, square and linear faces with clean lines, conceived as part of the ceiling rather than as a mechanical accessory.

Finished to belong

Steel and aluminium, powder-coated in any RAL colour, with coloured concave elements on NEX: the diffuser matches the ceiling, the wall or the exposed duct, or stands out from them.

Engineered to perform

High induction that mixes the air before it reaches the occupants: more comfort, less energy, no compromise on the design.

Projects

In real spaces.

A few projects made with our diffusers, for inspiration. You will find more photographs on each product page.

14 photographs

KAM-D Jet Diffusers Concealed Sidewall in Airport — KAM-D KAM-D Jet Diffusers concealed in Airport wood wall

Rectangular PLAY diffuser is ideal for hallways. — Rectangular PLAY diffuser is ideal for hallways

NEX-C Painted Black With Conical Plenum Exposed Duct — NEX-C NEX-C Concave Elements Round Swirl Diffuser with conical Plenum installed on exposed duct in a restaurant

OTO-C Star Swirl Diffuser Surface Mount Fancy Victorian Design — OTO-C OTO-C Round Swirl Diffuser installed in fancy victorian ceiling

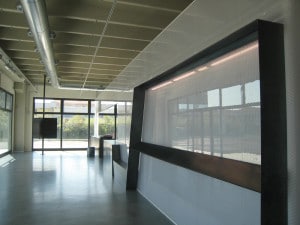

KAM-D Jet Diffusers Installed on Duct in Hallway — KAM-D Exposed duct in hallway with multiple small KAM-D Jet Diffusers

KAM-W Jet Diffuser Sidewall Clothing Store Outlet — KAM-W KAM-W Nozzle Jet Diffusers integrated in outlet wall

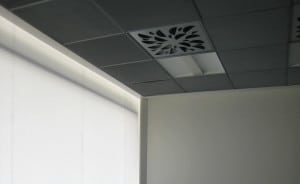

Nice NEX diffuser in ceiling — NEX diffuser with black concave elements in futuristic grey room

KOO KOO Multi Nozzle Jet Diffusers in New Armeco Office

NEX-C Shared Office Space With NEX-C Architectural Swirl Diffuser, IN-RGY Headquarters

Black LSD High Induction Slot Diffusers Between Acoustical Panels - Cegep St-Hyacinthe — LSD Black LSD High Induction Slot Diffusers Between Acoustical Panels – Cegep St-Hyacinthe

NEX-C NEX-C Architectural Swirl Diffuser, in Employees Lounge, IN-RGY Office

NEX-S-ER with Red Concave Elements installed in cafeteria with red wall - New QAT Offices — NEX-S NEX-S-ER with Red Concave Elements installed in cafeteria with red wall – New QAT Offices

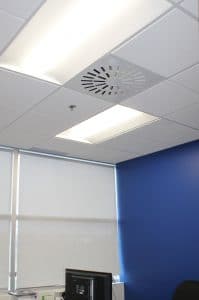

AXO-S-AB installed in a small office ceiling - New QAT Offices — AXO-S AXO-S-AB installed in a small office ceiling – New QAT Offices

NEX-C NEX-C in Architectural Office Design, IN-RGY Entrance, Street View

Forms

A form for every ceiling.

From a single circle to a continuous line, every family keeps the same standard: a clean face and high-induction mixing.

01 · 5 models

Round

Swirl, concave elements or plaque: a single circle on the ceiling, with high-induction mixing behind it.

02 · 4 models

Square

For T-bar and drywall ceilings: square faces that sit on the ceiling grid.

03 · 2 models

Rectangular

Rectangular faces for hallways and walls: an adjustable diffuser or a nozzle panel, in the same proportion as the space.

04 · 3 models

Linear

Slots, linear jets and perforated duct: a continuous line that follows the architecture.

05 · 3 models

Jet

Adjustable nozzles, on the wall or on the duct, that disappear into slats and walls in large spaces.

06 · 2 models

Returns

Matching architectural return grilles, with or without a filter, so the loop closes on the same line.

Finishes

Dressed to impress.

Every diffuser can be powder-coated in any RAL colour: white to disappear into the ceiling, black to show on an exposed duct, or the colour of the space. NEX diffusers go further, with coloured concave elements set into the face.

NEX concave elements

NEX

White
Pistachio Green
Lavender Blue
Red
Night

Performance

Architectural does not mean compromise.

Some people think of architectural diffusers as purely aesthetic products. Ours measurably improve thermal comfort and energy efficiency.

Thermal comfort

High induction mixes supply air with room air before it reaches anyone: no drafts, no stratification.

Learn more

Energy efficiency

Better mixing lowers the load on the equipment upstream, in heating and in cooling.

Learn more

Indoor air quality

More effective air distribution delivers fresh air throughout the occupied zone, per ASHRAE 62.1.

Learn more

Catalogue

All architectural diffusers.

Product selector

★

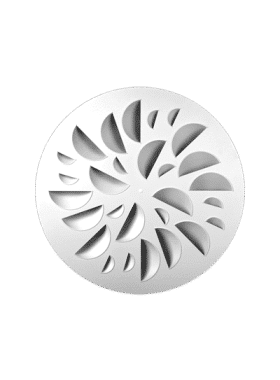

NEX-C

Architectural Concave Elements Round Swirl Diffuser

16″ Diameter, 20″ Diameter, 25″ Diameter · Steel

NEX-S

Architectural Concave Elements Square Swirl Diffuser

12″ x 12″, 24″ x 24″ · Steel

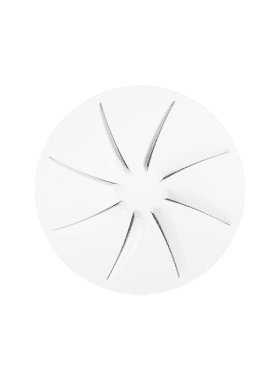

OTO-C

Curved Stamped Slot Architectural Round Swirl Diffuser

25″ Diameter · Steel

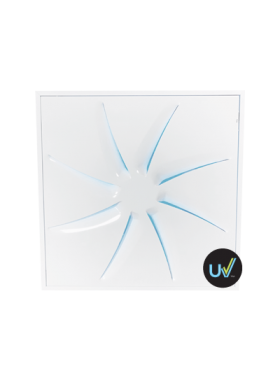

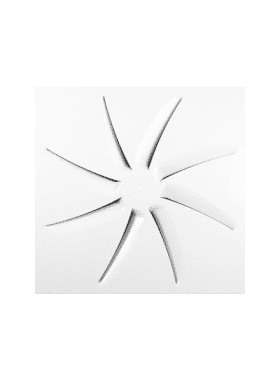

OTO-S

Curved Stamped Slot Architectural Square Swirl Diffuser

24″ x 24″ · Steel

PLAY-C

360 Degrees Adjustable Sectors Round Diffuser

25″ Diameter · Steel

★

PLAY-S

360 Degrees Adjustable Sectors Square Diffuser

24″ x 24″ · Steel

PLAY-R

360 Degrees Adjustable Sectors Rectangular Diffuser

36″ x 12″, 48″ x 12″ · Steel

★

AXO-S

High Induction Adjustable Square Swirl Diffuser

12″ x 12″, 16″ x 16″, 20″ x 20″, 24″ x 24″, 32″ x 32″ · Plastic ABS Vanes, Steel

AXO-C

High Induction Adjustable Round Swirl Diffuser

12″ Diameter, 16″ Diameter, 20″ Diameter, 25″ Diameter, 33″ Diameter · Plastic ABS Vanes, Steel

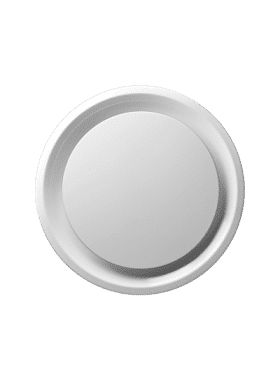

DSO Architectural Aluminum Round Plaque Diffuser

DSO

Architectural Aluminum Round Plaque Diffuser With Removable Core

06″ Neck Diameter, 08″ Neck Diameter, 10″ Neck Diameter, 12″ Neck Diameter, 160 mm, 200 mm, 250 mm, 315 mm · Aluminum

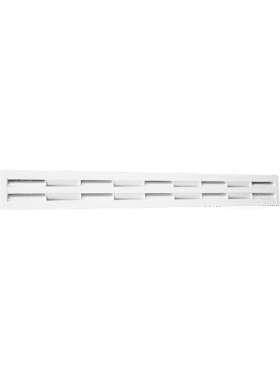

LSD High Induction Adjustable Linear Slot Diffuser

★

LSD

High Induction Linear Slot Diffuser

Any length up to 6’ 6” (2m) · Aluminum, PVC Vanes

★

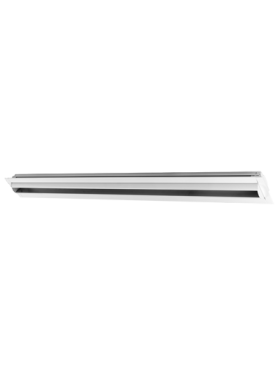

KOBE

Long Throw Adjustable Linear Jet Diffuser

★

BREEZ

Architectural Perforated Duct Diffusers

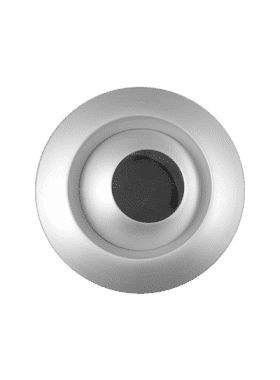

KAM-W

Punkah Nozzle Jet Diffuser – Surface Mount

05″ Neck Diameter, 06″ Neck Diameter, 08″ Neck Diameter, 10″ Neck Diameter, 12″ Neck Diameter, 16″ Neck Diameter, Also Available in Metric · Aluminum

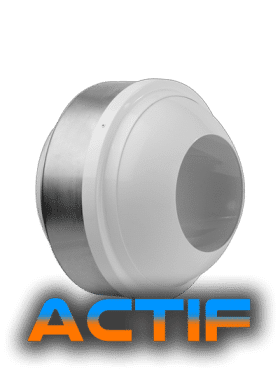

KAM-D

Nozzle Jet Diffuser – Duct Mounted

05″ Neck Diameter, 06″ Neck Diameter, 08″ Neck Diameter, 10″ Neck Diameter, 12″ Neck Diameter, 16″ Neck Diameter, Also Available in Metric · Aluminum

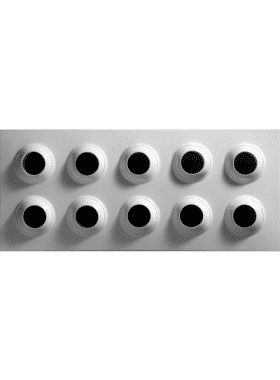

KOO Adjustable Long Throw Multi-Jet Nozzle Diffuser

★

KOO

Architectural Adjustable Long Throw Multi-Nozzle Jet Diffuser

Aluminum, Galvanized Steel · Adjustable Airflow

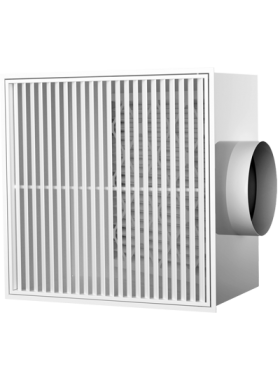

FLYIN

FLYIN Architectural Filter Return Air Grille for Commercial Ceilings

YIN

YIN Architectural Return Air Grille for Commercial Ceilings

Architectural brochure

The architectural range, in one document.

Forms, finishes, dimensions and project photographs, for your boards and your specifications.

Download (PDF)

SelectiV · Verified

Designing a room? Start with the air.

Use SelectiV to lay out diffusers in 3D, or ask for a Verified CFD study to validate comfort, IAQ and energy before anything is installed.
