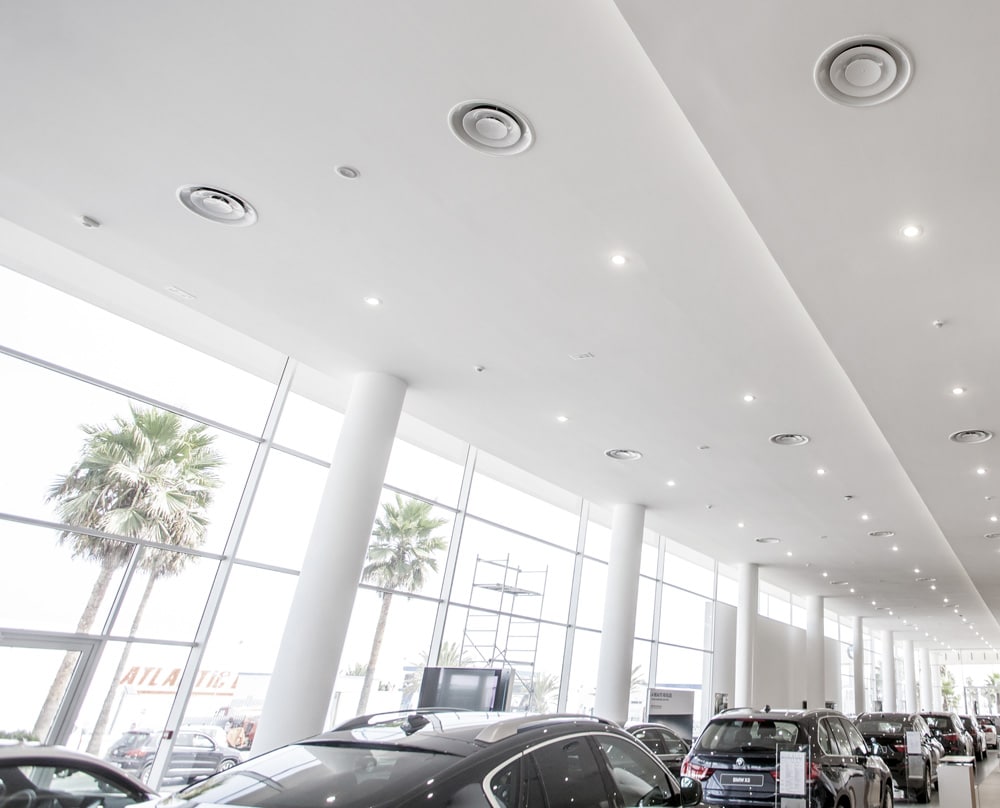

DCG Aluminum Adjustable Round DiffuserDCG Aluminum Adjustable Round Diffuser Black, Closeup View With Duct and FittingsDCG Aluminium Adjustable Round Diffusers Installed in Nike Factory StoreDCG 3 Cone Aluminum Round Diffuser Installed in BMW Dealership's CeilingDCG Aluminum Adjustable Round Diffuser in Retail StoreDCG Diffuser Great For Large SpacesDCG Perfect For Restaurants With Open CeilingsDCG Warner Bros Coconut GroveDCG in Apple StoreDCG in Office CeilingDIFTRONIC Room Duct


0 Reviews

Adjustable Aluminum 3 Cone Round Diffuser


DCG Aluminum Adjustable Round Diffusers are available in multiple imperial and metric neck dimensions. Ideal for commercial applications ranging from restaurants and stores to any application that requires vertical adjustment of the airflow, has visible ducts or higher-than-usual ceiling heights.

Three methods of adjustment are available: manual, thermodynamic and actuator-controlled.


Product Description

DCG Aluminum Adjustable Round Diffusers are recommended for heating, ventilating, and cooling applications.


DCG diffusers provide a 360° air diffusion pattern and excellent performance in VAV systems.


Full adjustability is possible by rotating the inner core clockwise or counter-clockwise to move the cones up or down, changing from horizontal projection to vertical projection in accordance with the supply air temperature. DCG might be the commercial round diffuser boosting the best vertical adjustment on the market, thanks to its largest cones’s accented profile.


Three models of DCG are offered with different methods of adjustment:

  • Manually adjustable
  • Thermodynamic (DCG-ACTIF)
  • Adjustment by means of an actuator, great combination with the DIFTRONIC system




DCG round diffusers provide great performance in temperature differentials up to 54ºF (12ºC) and are suitable for premises with ceilings 8.5 ft (2.6 m) and higher.
Original design by Lievore, Altherr & Molina for Madel.



Additional Information


06″ Neck Diameter, 08″ Neck Diameter, 10″ Neck Diameter, 12″ Neck Diameter, 14″ Neck Diameter, 16″ Neck Diameter, 18″ Neck Diameter, 20″ Neck Diameter, Also Available in Metric

Adjustable Airflow

Yes, Vertical
