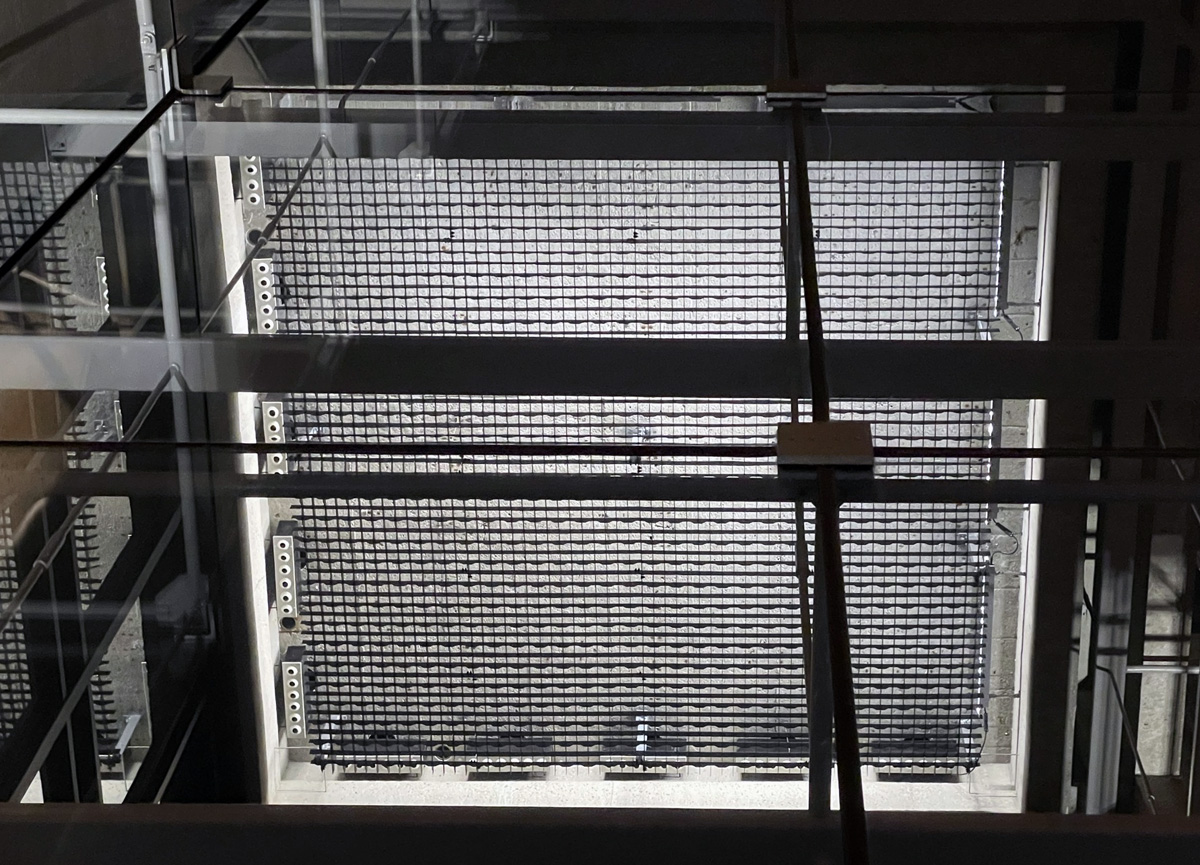

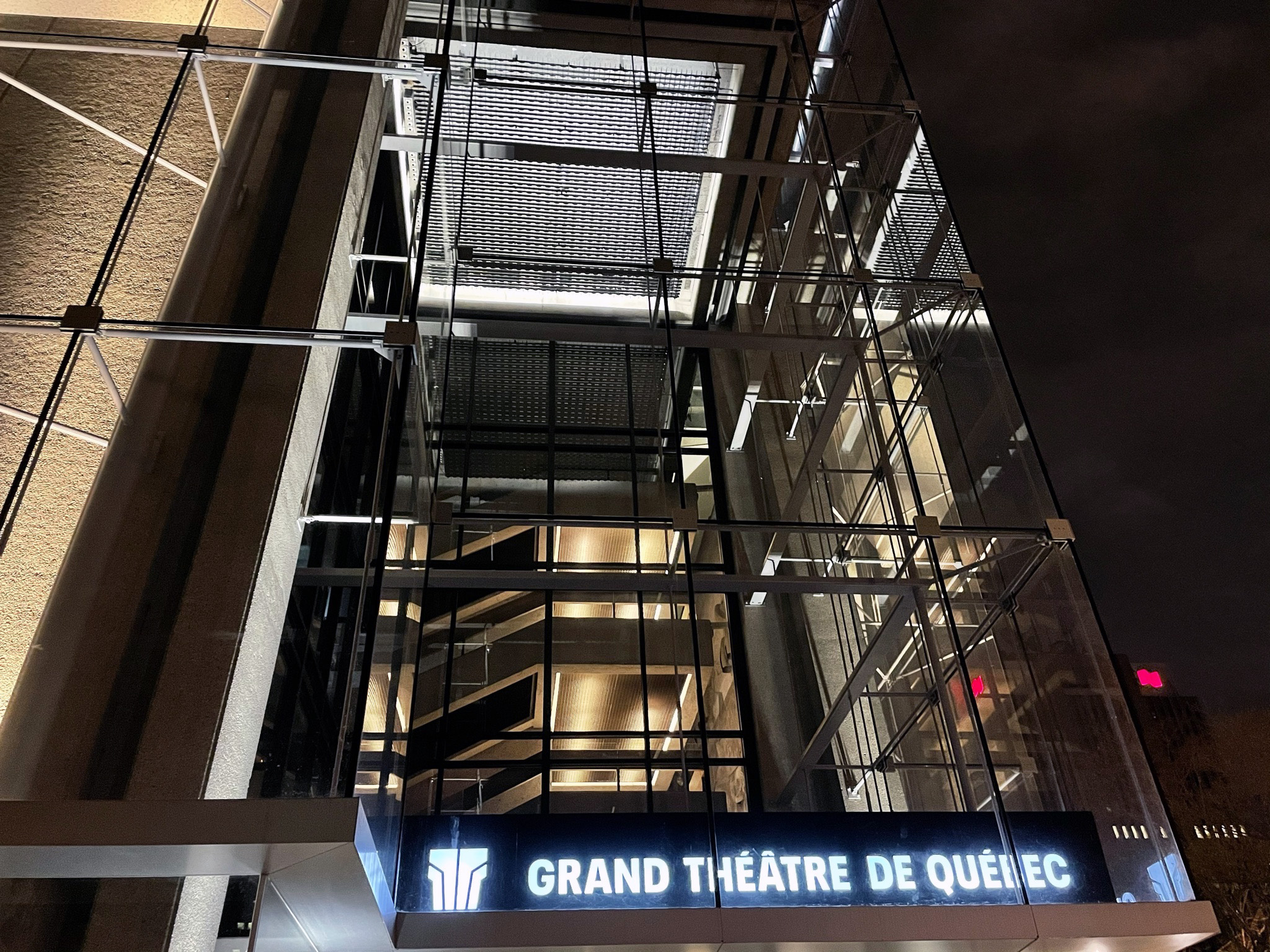

KOO Adjustable Long Throw Multi-Jet Nozzle DiffuserKOO Multi Nozzle Jet Diffusers in New Armeco OfficeKOO Closeup Grand Theatre de QuebecKOO Multi-Nozzle Jet Diffusers installed in Grand Theatre de QuebecKOO installed in ING BankKOO installed in ING Bank Closeup ViewKOO Mini Jet Diffuser Panel Fashion Accessory StoreKOO Multi Jet Diffuser Panel Small ShowroomKOO Concealed in Wall, Virgin UKKOO at Mercat del Born BarnaKOO Multi Jet Diffuser Panel Library WallKOO Multi Nozzle-Jet Diffuser Panel supplying air in a large reception hallKOO Multi Jet Diffuser Panel Large Reception Hall

KOO

0 Reviews

The KOO Long Throw Multi-Jet Nozzle Diffusers represent a vanguard in design of air diffusers. Integrating one or two rows of jet nozzles into a rectangular panel, the outcome is a smooth and homogeneous surface reducing the visual impact on interior architecture.

KOO consists of multiple aluminum nozzles that are aligned in one or two rows, in a galvanized steel panel. Two different nozzle diameters are available, including 3 5/32” (80 mm) and 4 59/64” (125 mm).  It is possible to have between two and twenty nozzles per panel.  There are a total of 32 available combinations to supply air between 15 cfm and 1065 cfm.

KOO comes with multiple optional features:

  • Concealed spring clips with secure hooks for ceiling installation, reducing the installation time to a few seconds and with no visible screws.
  • Matching PLRX plenums with either top or side connection(s).
  • Wide selection of air volume dampers, including our standard perforated damper/air equalizer and our series of cable-operated dampers.
  • Plenums also available with acoustical liner or thermal insulation.
  • IEK adapter to mount KOO directly on round metal ducts.



Product Description

The KOO Long Throw Multi-Jet Nozzle Diffusers represent a vanguard in design of air diffusers. Integrating one or two rows of jet nozzles into a rectangular panel, the outcome is a smooth and homogeneous surface reducing the visual impact on interior architecture.

KOO Jet Nozzle Panel Diffusers respond to different functional and architectural requirements, thanks to their manually adjustable nozzles in all directions.

KOO consists of multiple aluminum nozzles that are aligned in one or two rows, in a galvanized steel panel. Two different nozzle diameters are available, including 3 5/32” (80 mm) and 4 59/64” (125 mm).  It is possible to have between two and twenty nozzles per panel.  There are a total of 32 available combinations to supply air between 15 cfm and 1065 cfm.

Thanks to its long throw and flexibility of direction of the air pattern, KOO is suitable for air diffusion in all kinds of different architectures. It provides a high induction air rate level, reducing stratification.

The concealed spring clip system reduces the installation time to a few seconds.  It also includes secure hooks for ceiling installation. The result is a smooth and homogeneous surface that reduces the visual impact on the interior architecture.

Matching PLRX plenums are available with either top or side connection(s).  There is also a wide selection of air volume dampers, including our standard perforated damper/air equalizer and our series of cable-operated dampers. Other options include acoustical liners and thermal insulation.  Similar to all of our plenums, anti-seismic tabs are standard.

KOO can also be mounted directly on a round metal duct using an IEK adapter.



Documents

Additional Information

Adjustable Airflow

Yes

Material

Aluminum, Galvanized Steel
