Plenums
PLRR

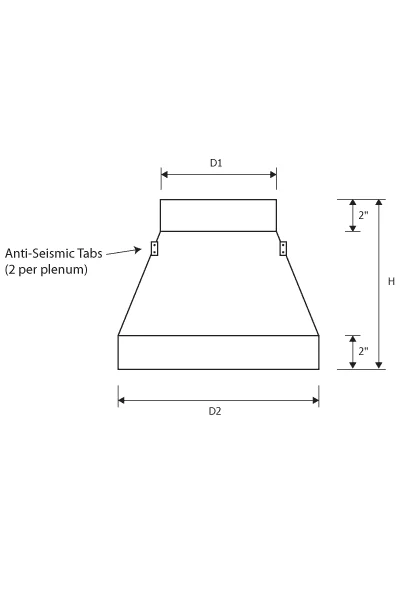

PLRR is a high performance conical plenum with round-to-round top connection for AXP Round Swirl Diffusers and DCG Round Adjustable Diffusers with integral neck.
PLRR is made of heavy-gauge galvanized steel with anti-seismic tabs and is available with multiple options, including an Air Equalizing Grid, R6 Thermal Insulation and a variety of dampers including cable-operated dampers.
Multiple dimension combinations available ranging from 4″ duct diameter to 12″ diffuser neck diameter.
- Material
- Galvanized Steel
- Categories
- Plenums
Downloads
Description
PLRR is a high performance conical plenum with round-to-round top connection for AXP Round Swirl Diffusers and DCG Round Adjustable Diffusers with integral neck.
PLRR is made of heavy-gauge galvanized steel with anti-seismic tabs and is available with multiple options:
- Air Equalizing Grid (perforated plate)
- R6 Thermal Insulation
- Perforated Swivel Air Volume Damper
- Manually operated cable damper with cable through the diffuser’s face
- Manually operated cable damper with cable through wall or ceiling with termination fixture
- Electro-balanced, remote controlled cable damper with cable through the diffuser’s face
- Electro-balanced, remote controlled cable damper with cable through wall or ceiling with termination fixture
Multiple dimension combinations available ranging from 4″ duct diameter to 12″ diffuser neck diameter.
You might also like
DCG
Adjustable Aluminum 3 Cone Round Diffuser
06″ Neck Diameter, 08″ Neck Diameter, 10″ Neck Diameter, 12″ Neck Diameter, 14″ Neck Diameter, 16″ Neck Diameter, 18″ Neck Diameter, 20″ Neck Diameter, Also Available in Metric · Yes, Vertical
AXP
Aluminum Round Fixed Swirl Diffuser
05″ Neck Diameter, 06″ Neck Diameter, 08″ Neck Diameter, 10″ Neck Diameter, 12″ Neck Diameter · Aluminum

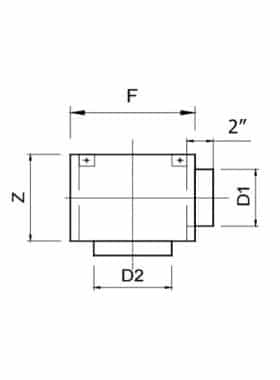

PLXP
