Plenums
PLXP

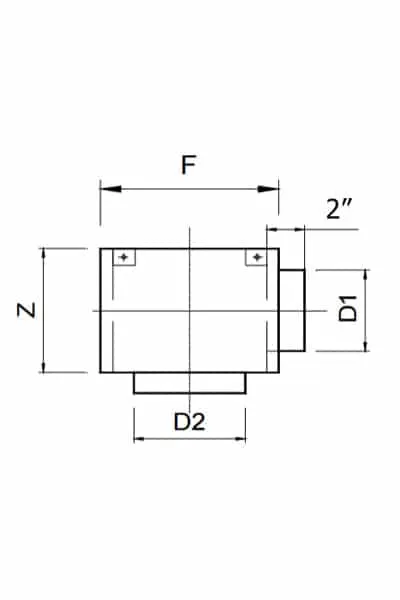

PLXP is a high performance plenum with side connection for round diffusers with integral neck AXP Swirl Diffusers and DCG Adjustable Diffusers.
PLXP is made of heavy-gauge galvanized steel with anti-seismic tabs and is available with multiple options, including an Air Equalizing Grid, Acoustical Liner, R6 Thermal Insulation and a variety of dampers including cable-operated dampers.
PLXP is available for diffusers with neck diameters ranging from 5″ (125 mm) to 12″ (315 mm).
- Material
- Galvanized Steel
- Categories
- Plenums
Description
PLXP is a high performance plenum with side connection for round diffusers with integral neck AXP Swirl Diffusers and DCG Adjustable Diffusers.
PLXP is made of heavy-gauge galvanized steel with anti-seismic tabs and is available with multiple options:
- Air Equalizing Grid (perforated plate)
- Acoustical Insulation
- R6 Thermal Insulation
- Perforated Swivel Air Volume Damper
- Manually operated cable damper with cable through the diffuser’s face
- Manually operated cable damper with cable through wall or ceiling with termination fixture
- Electro-balanced, remote controlled cable damper with cable through the diffuser’s face
- Electro-balanced, remote controlled cable damper with cable through wall or ceiling with termination fixture
PLXP is available for diffusers with neck diameters ranging from 5″ (125 mm) to 12″ (315 mm).
You might also like

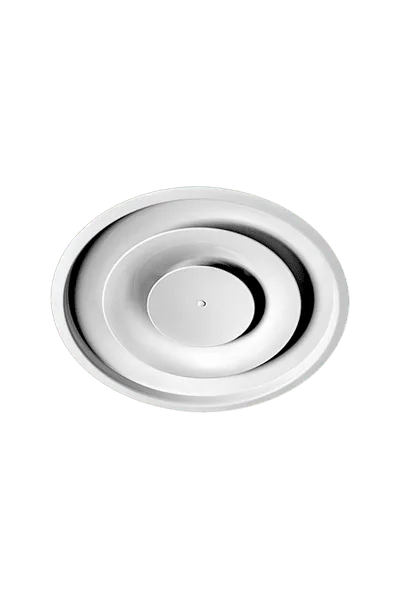

DCG
Adjustable Aluminum 3 Cone Round Diffuser
06″ Neck Diameter, 08″ Neck Diameter, 10″ Neck Diameter, 12″ Neck Diameter, 14″ Neck Diameter, 16″ Neck Diameter, 18″ Neck Diameter, 20″ Neck Diameter, Also Available in Metric · Yes, Vertical

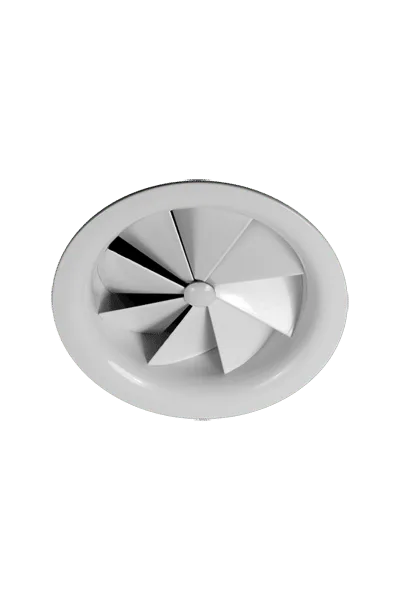

AXP
