PLAY-UV

0 Reviews

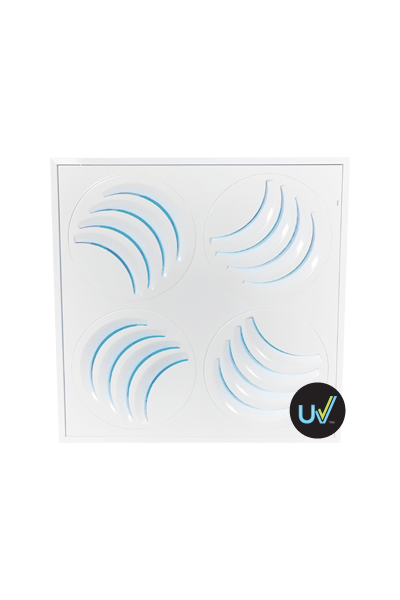

360-Degree Adjustable UV Diffuser for 200 cfm – 400 cfm

UV Diffusers combine high efficiency Filtration, UV-C Germicidal Irradiation and High Induction Diffusion of the air coming from the ventilation system in the room – a perfect combination to help contain the spread of COVID-19 and other airborne diseases in commercial and institutional buildings.

They act as a shield protecting the room from potential contamination of the recycled air.

UV Diffusers are highly efficient, compatible with existing systems, easy to install and to maintain. For more information about UV Diffusers, visit the UV Diffusers Website at UVDiffusers.com.

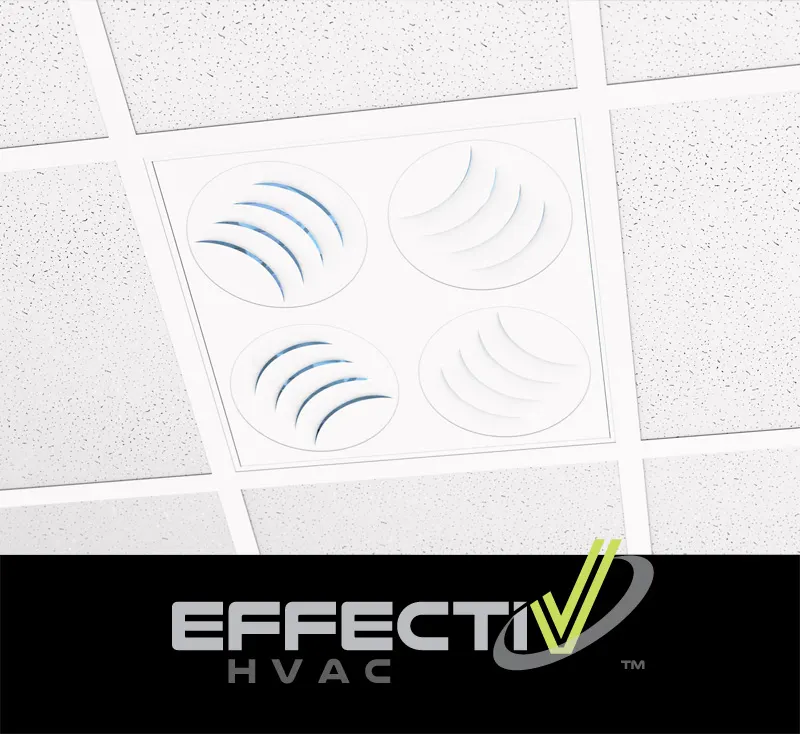

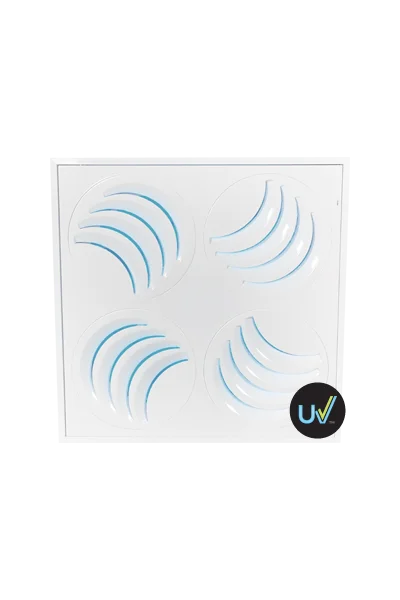

PLAY-UV adjustable UV diffuser features a 360-degree adjustment of the airflow combined with a high discharge velocity to provide better mixing of the new air with room air. The result is an improved room ventilation and faster removal of contaminants. Another benefit is a significant improvement of occupants’ thermal comfort. Better air mixing can also help optimizing the performance of the HVAC system and reduce energy consumption.



Product Description

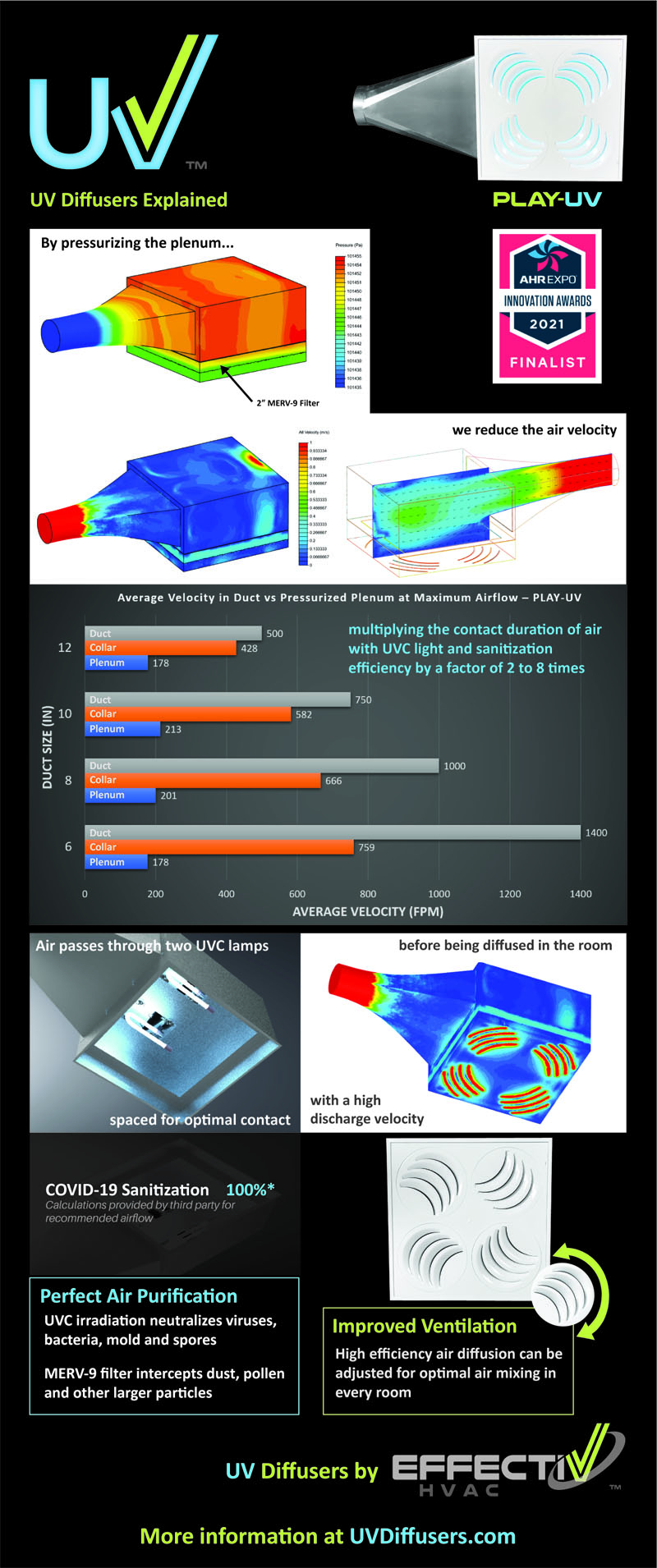

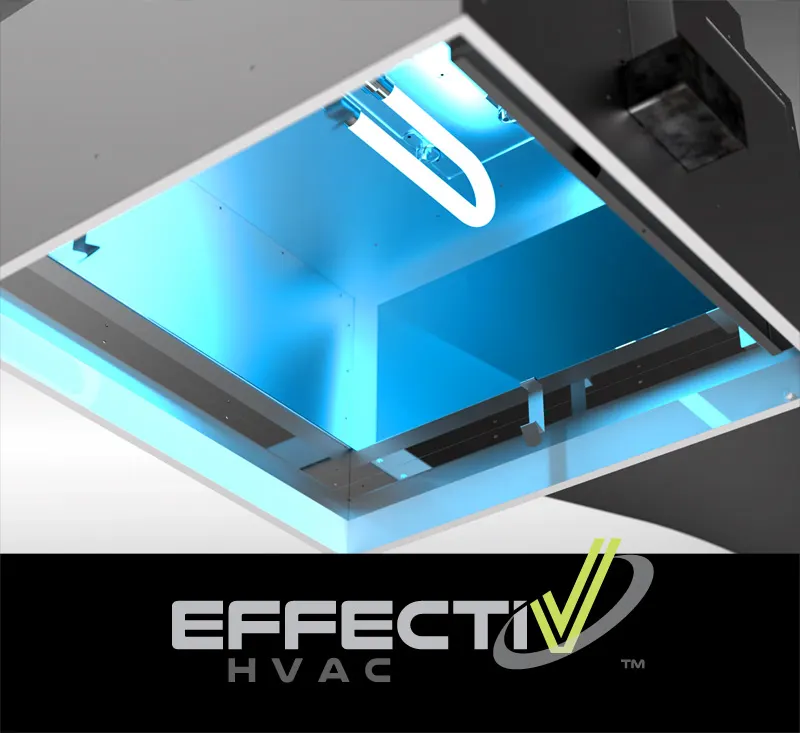

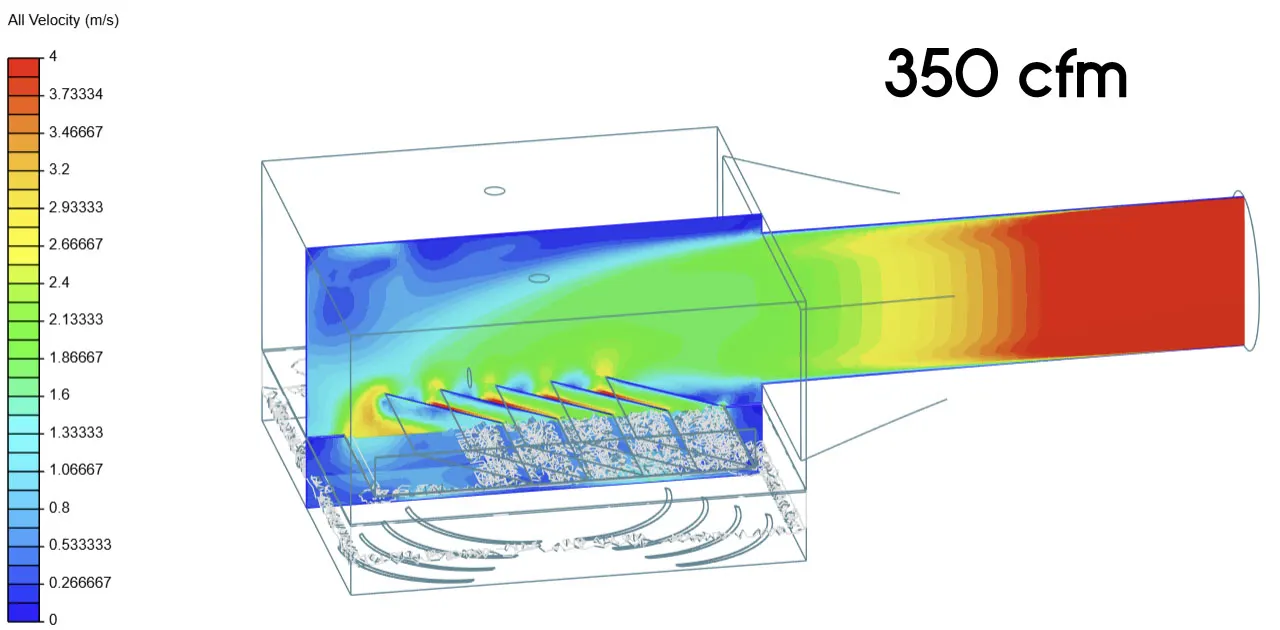

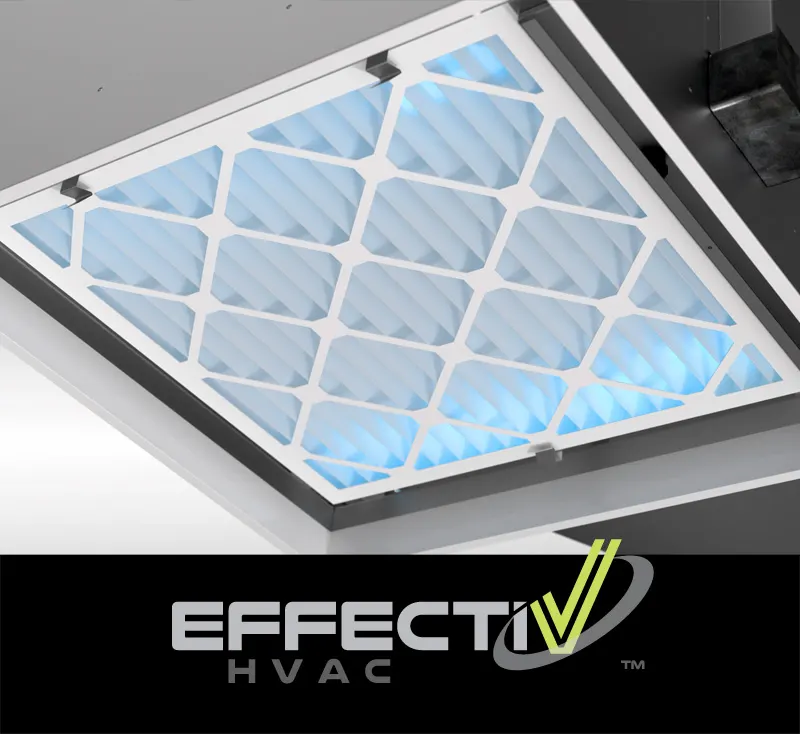

UV Diffusers by EffectiV HVAC™ act as a shield ensuring that the air entering a room is pure and safe from potential contamination in other rooms of the building, even when a significant percentage of air is recycled and recirculated. They are a 3-in-1 solution cleaning recycled air from pathogens using UV-C light, filtering the air from larger particles with a MERV-9 filter, and enhancing air mixing and room ventilation. By filtering the air at the end of the duct line and by slowing it down even more, UV Diffusers achieve up to 99.9999% sterilization performance of SARS-CoV-1, SARS-CoV-2, Legionella and other airborne viruses and bacteria which can spread easily through the ventilation system.

Visit the UV Diffusers website for more information and to see the videos at UVdiffusers.com

UV Diffusers are a practical solution which can be retrofitted in most existing buildings without other significant upgrades, and offer easy access for maintenance and filter replacement.

  • UV Diffusers help contain the spread of viruses and bacteria through ventilation systems
  • 3-in-1 solution combining UV-C irradiation, air filtration and improved air mixing and room ventilation
  • Single-pass deactivation of up to 99.9999% of SAR-CoV-1, SAR-CoV-2, Tuberculosis, Legionella and other airborne viruses and bacteria
  • Tested with the real SARS-CoV-2 virus in a 3rd party laboratory, achieving a 99.949% single-pass virus deactivation at 300 cfm
  • Hinged face provide easy access for filter change and maintenance
  • Four models to supply air volumes between 50 cfm and 550 cfm
  • Suitable for new buildings and existing buildings
  • High discharge velocity provide efficient mixing of supplied air with room air

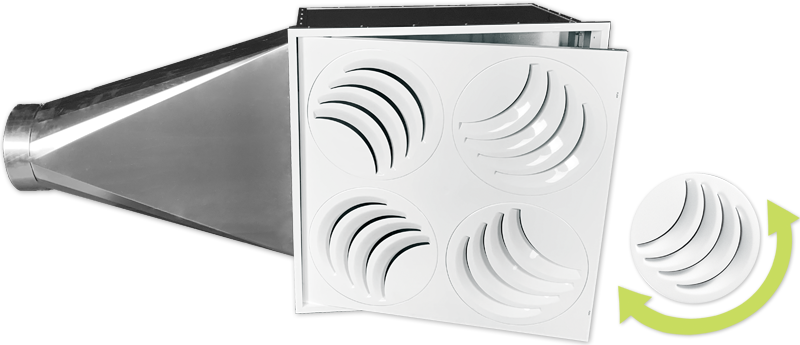

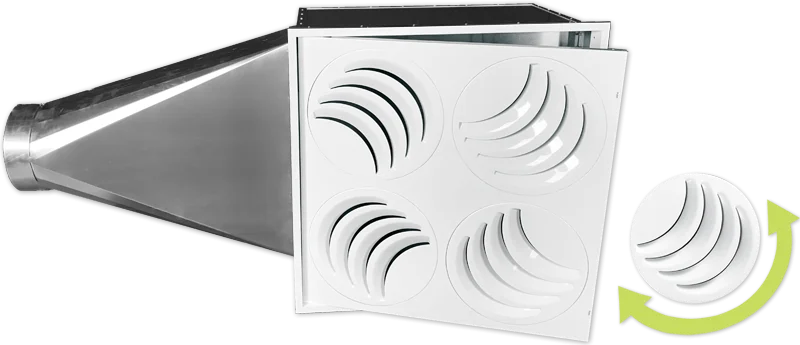

PLAY is the only diffuser in the world providing a full 360-degree horizontal adjustment of the airflow. Each round sector can be manually rotated from the face to redirect the airflow exactly where we need it.

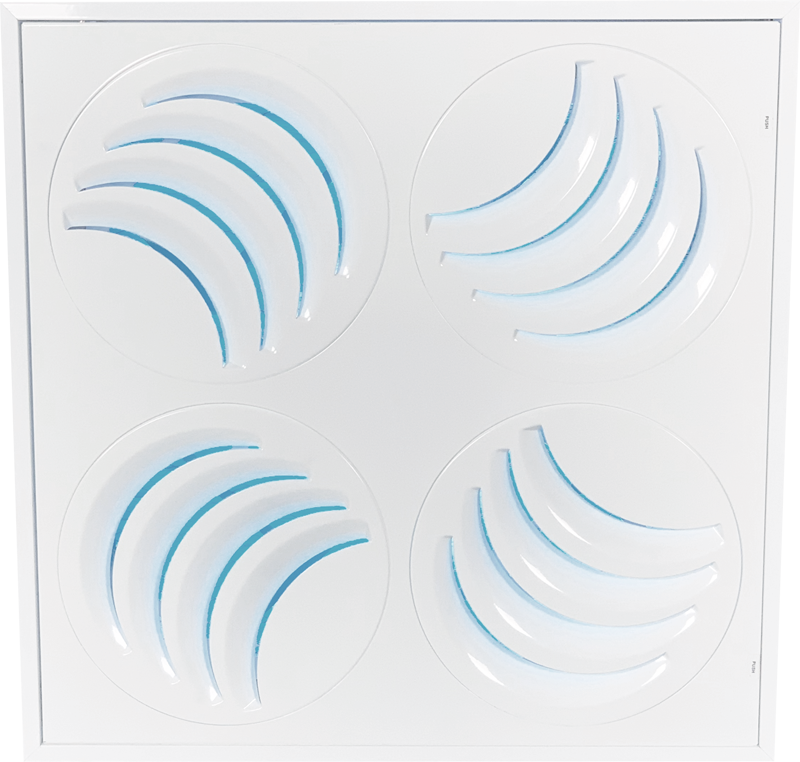

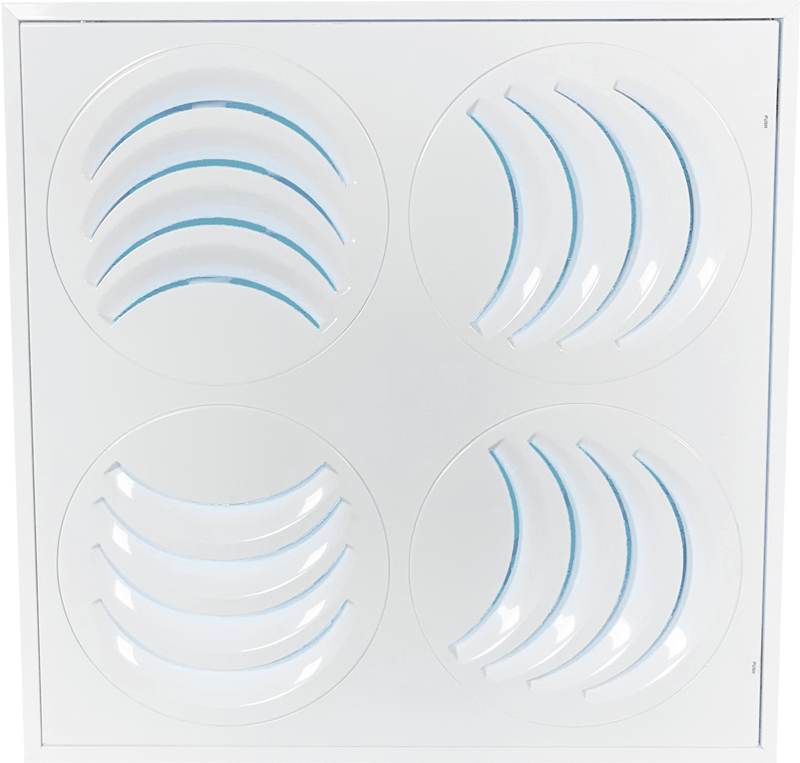

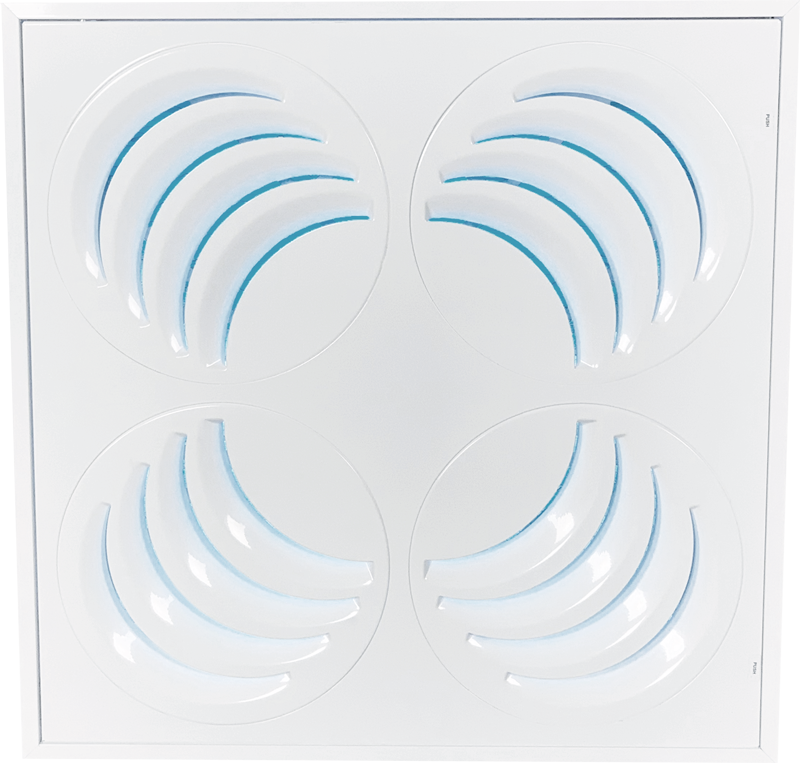

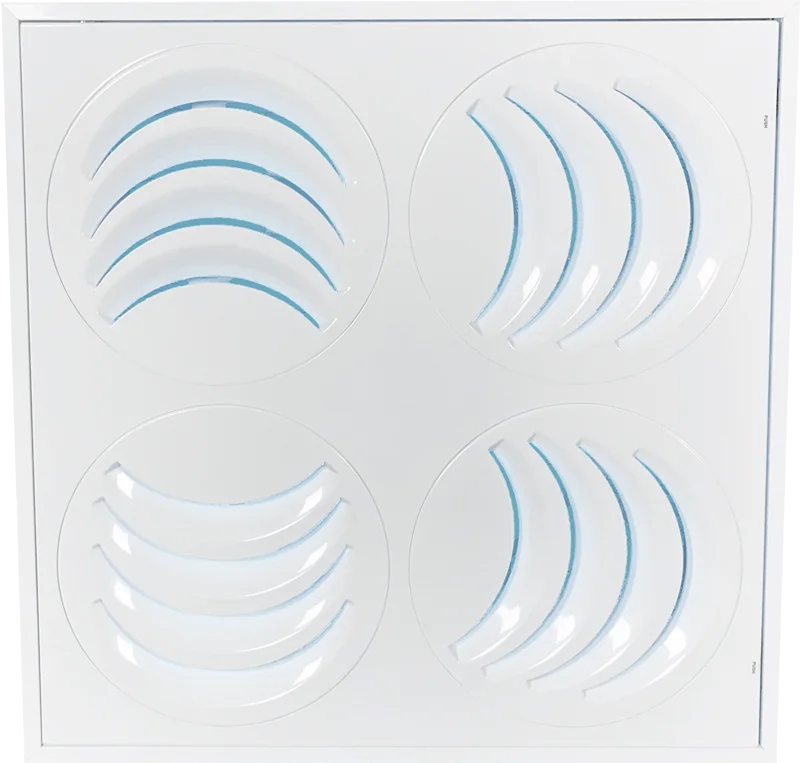

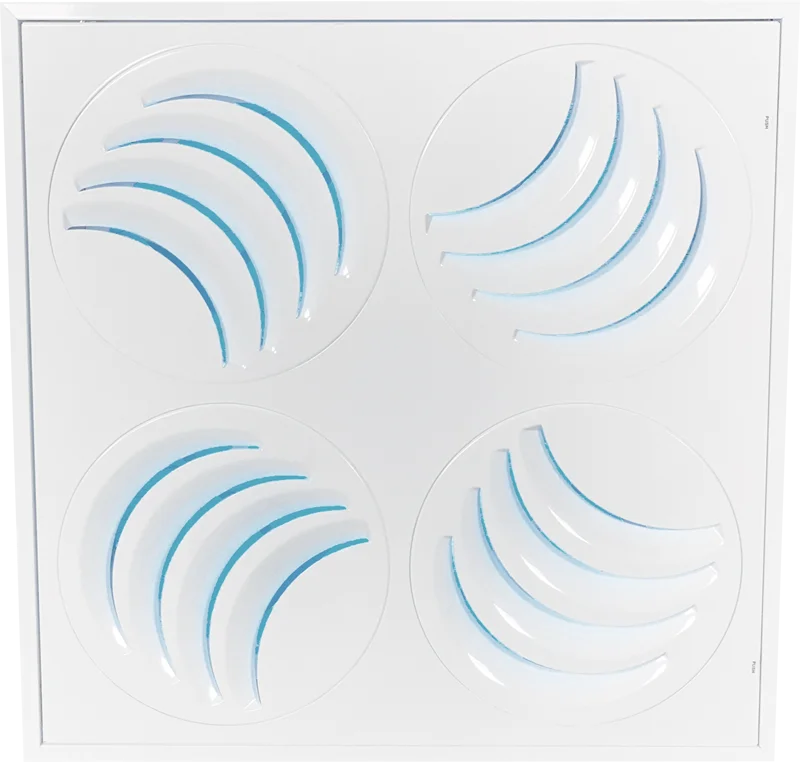

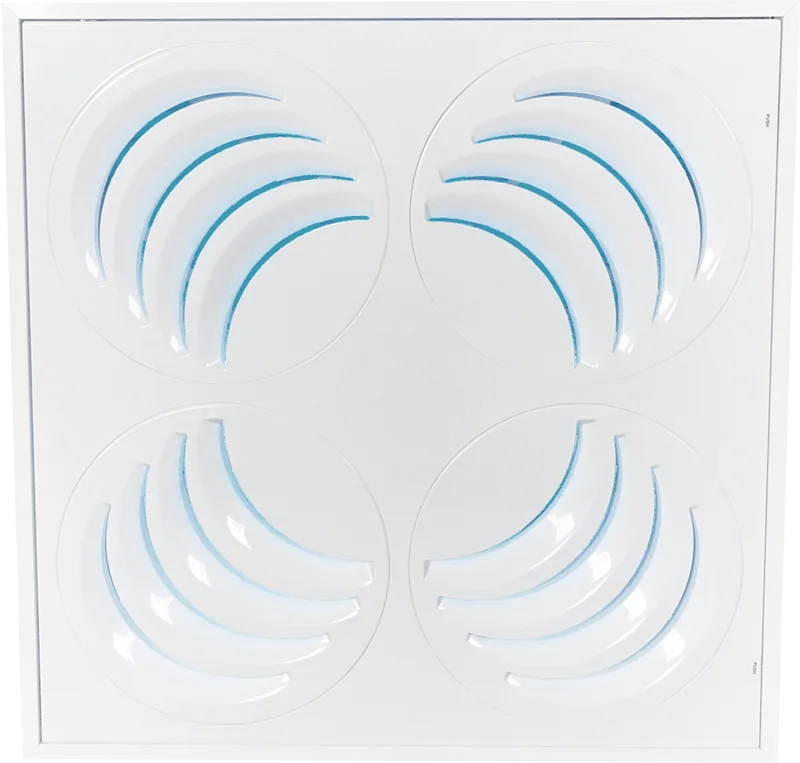

It ships as a swirl diffuser and can be manually adjusted to make it a 1-way, 2-way, 3-way or 4-way diffuser, or any hybrid combination.

PLAY-UV allows us to also reach parts of the room which would normally lack proper ventilation, either because of the room configuration, the diffuser location, obstacles, or other factors.

PLAY-UV also allows us to improve thermal comfort by redirecting the air away from people feeling drafts, or towards sources of heat gain/loss like large windows.

Thanks to the PLAY-UV diffuser, HVAC technicians can shape the air circulation in the room with precision, ensuring an almost perfect ventilation in any room configuration.



The use of this device is a supplement to and not a substitute for standard infection control practices; users must continue to follow all current infection control practices, including those related to the cleaning and disinfection of environmental surfaces.

Documents

Additional Information

Adjustable Airflow

Yes

Material

Galvanized Steel

Dimensions

24″ x 24″
