12ʺ x 12ʺ Square Swirl Diffusers

May 29, 2019 Posted by EffectiV HVAC - No Comments

This is a simple, yet very common question: which square diffusers do you have available in 12” x 12”?

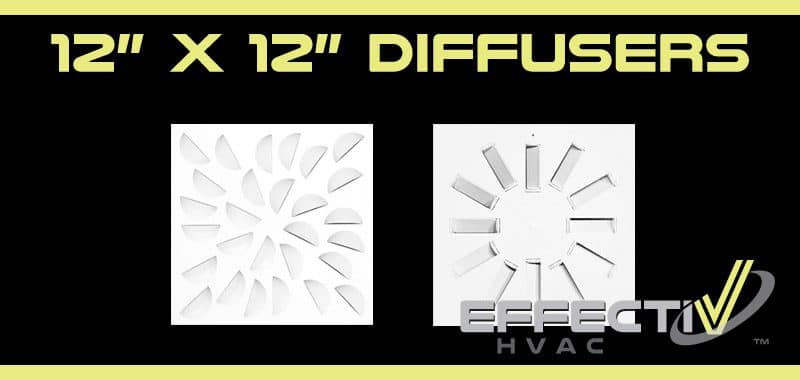

At the time of writing this article, we have two diffusers available in 12” x 12”: the AXO-S High Induction Swirl Diffuser, and the NEX-S Architectural Concave Elements Swirl Diffuser.

AXO is available with black or white diffusion vanes, and NEX is available with white, black, red, pistachio green or lavender blue concave elements.

They both require a PERFAIR-SS plenum, available with 5”, 6” or 8” neck diameter.

Standard lead time for these products is 1-3 weeks.

NEX-S 12" x 12"

NEX-S 12″ x 12″ Architectural Square Swirl Diffuser

AXO-S-AB 12" x 12" High Induction Square Diffuser

AXO-S-AB 12″ x 12″ High Induction Square Diffuser













16” x 16” and 20” x 20” square diffusers

AXO-S is also available in 16” x 16” and 20” x 20” dimensions and we keep some inventory of both dimensions with white vanes.

NEX-S can be also made in 16” x 16” and 20” x 20”, however longer lead times – approximately 8 weeks – will be required for these special orders.
